Magnetic Holding and Clamping Systems

Magnapads

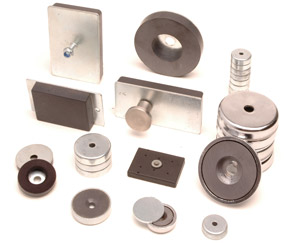

Magnapads consist of a powerful ferrite magnet with a steel back plate bonded to its reverse face. The steel back plate features either a mounting thread or mounting holes to allow easy fixing to other objects. The magnetic face itself has a latex rubber ‘cast’ around it to prevent scratching of steel objects and give excellent ‘anti-slip’ properties.

They are ideal for holding ‘taxi’ and other signs to vehicle roofs, fixing display boards / paintings onto metal office partitions and applying signs / moveable lights to steel work.

Ferrite Pot Holding Magnets with Counter Sunk Centre Mounting Hole

These consist of a ferrite ring magnet set into a steel ‘cup’ so as to ‘focus’ all the magnetic energy out of the exposed ‘working face’ of the magnet.

They can be used for the application of any object to steel ceilings / gantries etc and the fixing of machinery guards to allow rapid removal for servicing / repair etc.

All holding and clamping magnets are made from Grade 2 Anisoferrite material.

Dimensions	Product Code	Holds (Kg)	Mounting System
Magnapads
79 mm x 53 mm x 12 mm	Magnapad 1	9	Stud – M6 x 16 mm
75 mm x 39 mm x 12 mm	Magnapad 2	3	Holes 2 x 3mm
100 mm x 39 mm x 12 mm	Magnapad 3	6.5	Holes 2 x 3mm
127 mm x 102 mm x 12 mm	Magnapad 4	22	Stud – M6 x 16 mm
Ferrite Pot Holding Magnets with Counter Sunk Centre Mounting Hole
16 Ø OD x 3.2 Ø ID x 4.5	G2AF-16/3.2/4.5P	1.8	N/A
20 Ø OD x 4.2 Ø ID x 6	G2AF-20/4.2/6P	2.7	N/A
25 Ø OD x 5.5 Ø ID x 7	G2AF-25/5.5/7P	3.6	N/A
32 Ø OD x 5.5 Ø ID x 7	G2AF-32/5.5/7P	7.2	N/A
40 Ø OD x 5.5 Ø ID x 8	G2AF-40/5.5/8P	9.0	N/A
50 Ø OD x 8.5 Ø ID x 10	G2AF-50/8.5/10P	18	N/A
63 Ø OD x 6.5 Ø ID x 14	G2AF-63/6.5/14P	29	N/A
90 Ø OD x 10 Ø ID x 12	G2AF-90/10/12P	60	N/A
General Tolerances: ± 0.15mm
